Planning and Designing Your ADU
A step-by-step guide to planning your Accessory Dwelling Unit in California
Getting Started with Your ADU Project
Planning an ADU involves several important steps, from assessing your property's potential to finalizing your design. This guide will walk you through the entire process, with special attention to California's unique requirements and opportunities.
Assess Your Property
Before diving into design, evaluate whether your property is suitable for an ADU. Consider:
- Lot size and configuration
- Existing structures and their placement
- Access points for construction and future use
- Utility connections and potential upgrades needed
- Topography and drainage patterns
- Trees and landscaping that may be affected
In California, most single-family residential properties qualify for at least one ADU, but physical constraints may limit your options.
Research Local Regulations
While California has statewide ADU laws, local jurisdictions may have additional requirements. Research:
- Zoning regulations specific to your area
- Maximum size allowances (typically up to 1,200 sq ft in California)
- Height restrictions and setback requirements
- Parking requirements (often waived near transit in California)
- Design review processes if applicable
- Impact and connection fees
Contact your local planning department or check their website for ADU-specific guidance.
Determine Your ADU Type
California allows several types of ADUs. Consider which is best for your property:

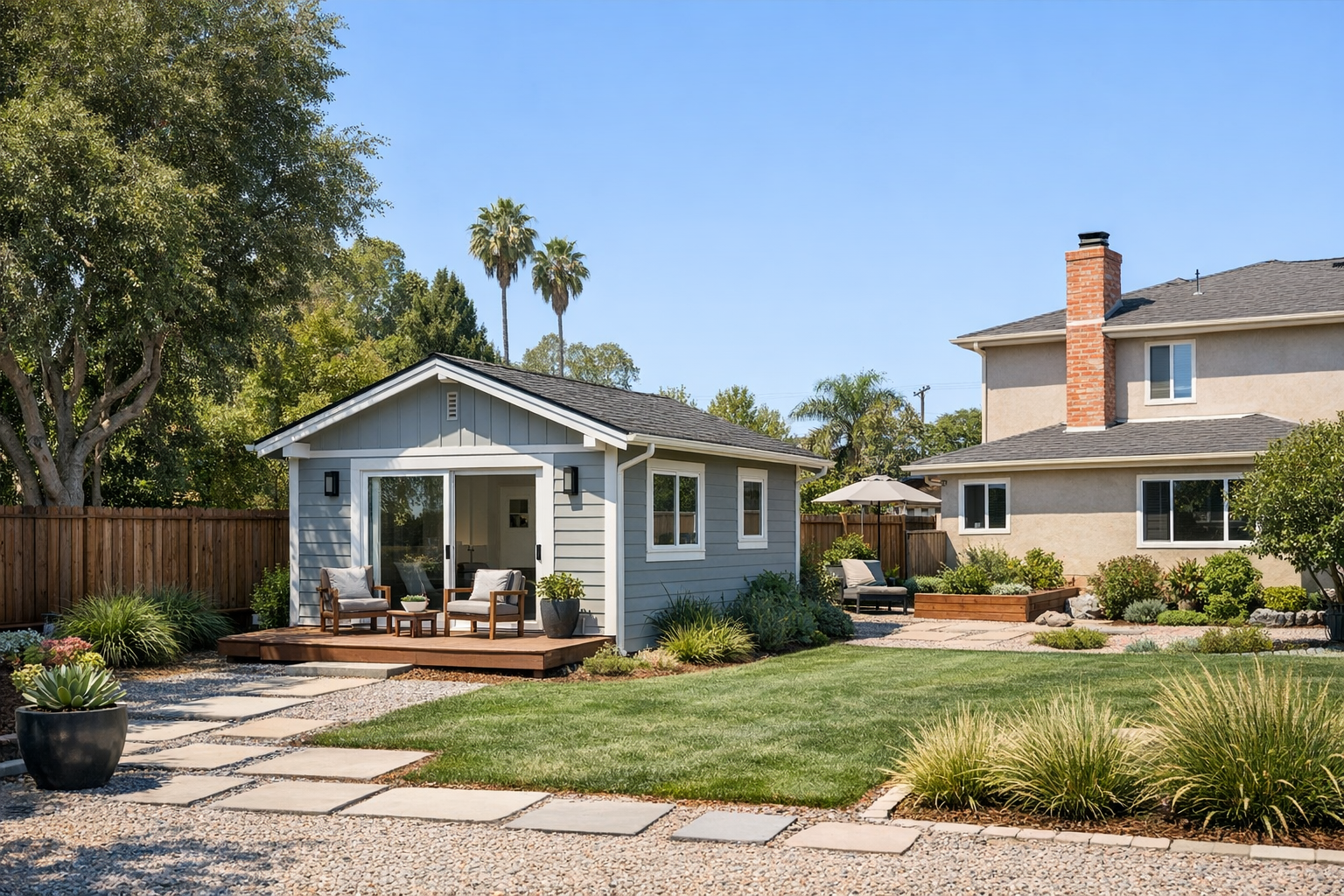

Detached ADU
A standalone structure separate from the main house. Offers maximum privacy but may require more extensive utility connections.

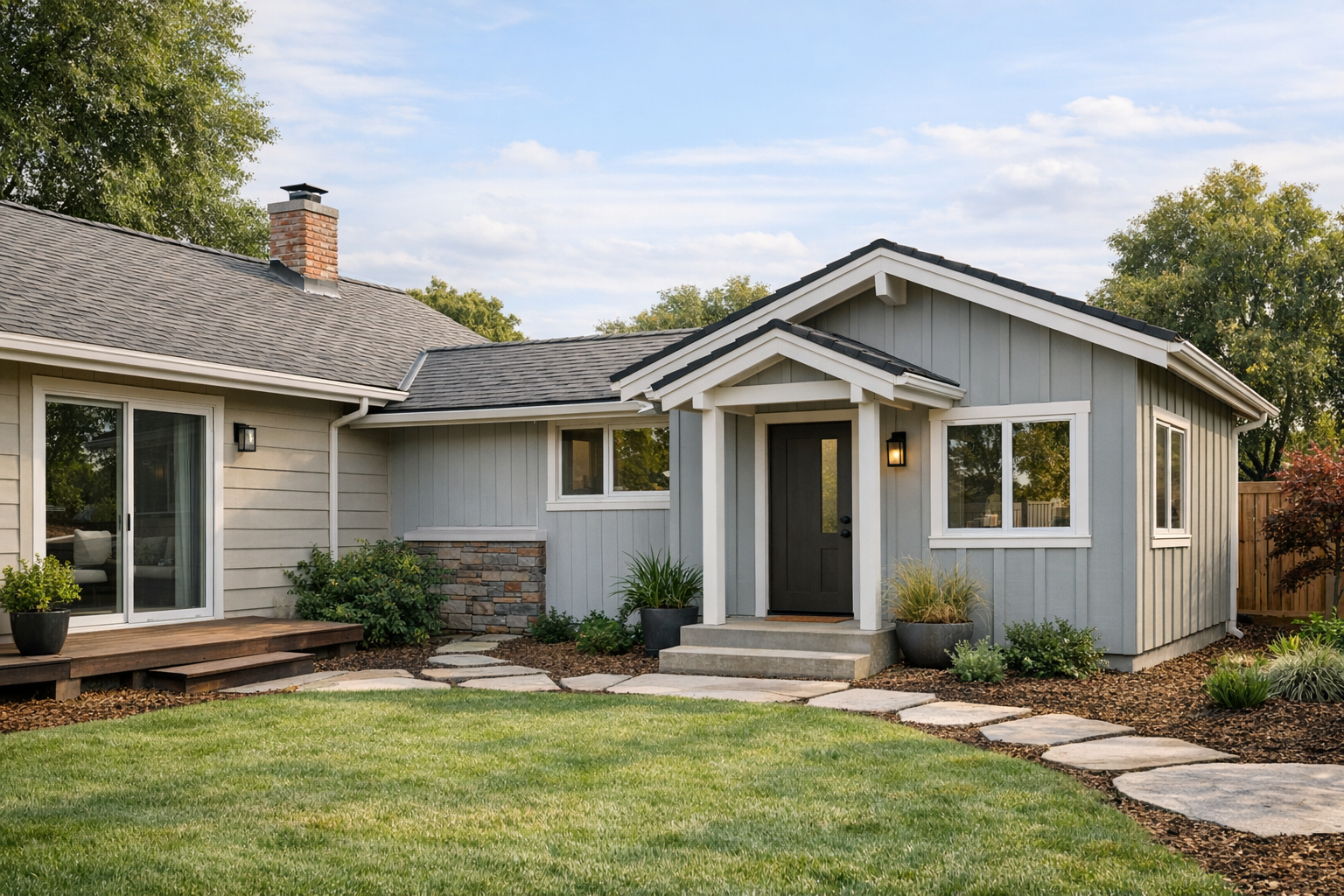

Attached ADU
Connected to the main house but with separate entrance. Often easier for utility connections and may be more cost-effective.

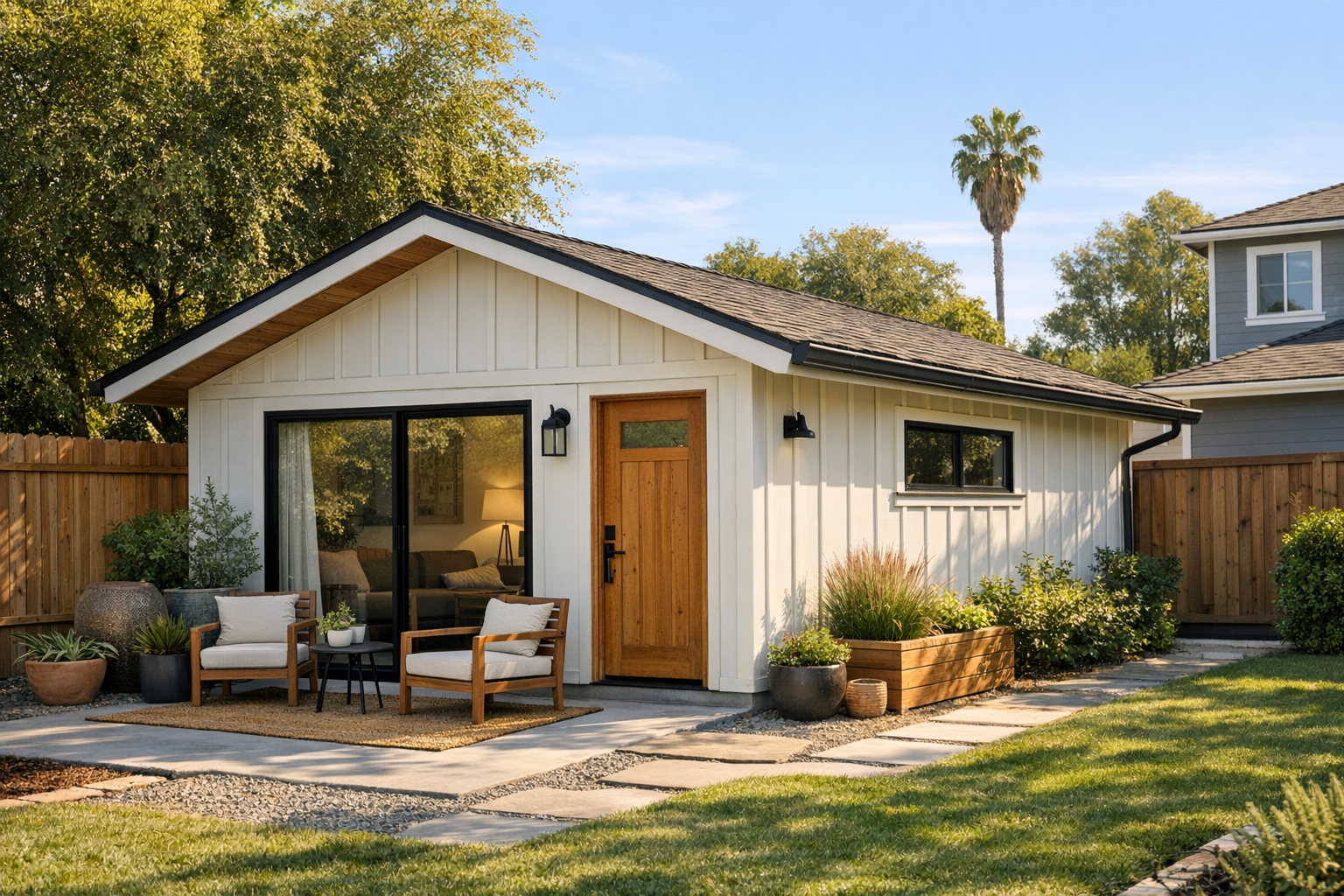

Conversion ADU
Created by converting existing space like a garage or basement. Often the most affordable option with simplified permitting in California.

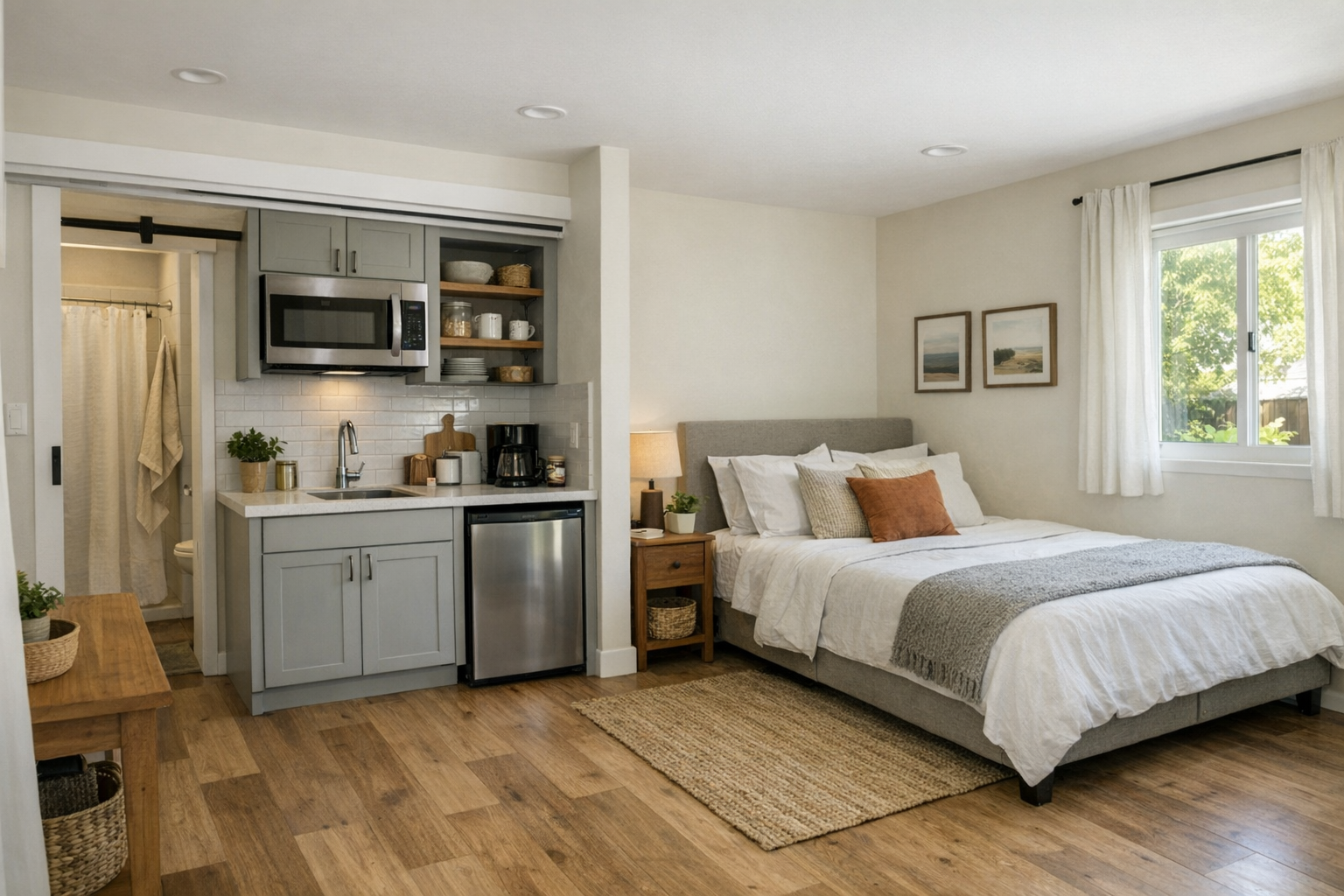

Junior ADU (JADU)
Up to 500 sq ft, created within the walls of the main house. May have simplified requirements and lower costs.
California law now allows both an ADU and a JADU on many single-family properties, potentially creating three units on one lot.
Establish Your Budget
Develop a realistic budget for your ADU project. In California, costs typically range:
- Conversion ADU: $100,000 - $200,000
- Attached ADU: $200,000 - $300,000
- Detached ADU: $250,000 - $400,000+
Your budget should include:
- Design and architectural fees
- Permitting costs
- Site preparation
- Construction costs
- Utility connections
- Finishes and fixtures
- Landscaping
- Contingency fund (typically 10-15%)
California offers several financing options, including the CalHFA ADU Grant Program, which provides up to $40,000 in pre-development funding.
Design Your ADU
Work with professionals to design an ADU that meets your needs and complies with regulations:
- Hire an architect or designer with ADU experience
- Consider prefab or modular options for potential cost savings
- Focus on space-efficient design for smaller footprints
- Incorporate California-specific considerations like earthquake safety
- Plan for energy efficiency to meet California's Title 24 requirements
- Consider solar readiness or installation (often required for new construction in California)
Design Tips for California ADUs
- Maximize natural light to reduce energy usage
- Consider indoor-outdoor living spaces to take advantage of California's climate
- Plan for adequate insulation to maintain comfort in various weather conditions
- Incorporate water-efficient fixtures to comply with California requirements
- Consider fire-resistant materials in high-risk areas
Obtain Permits
Navigate the permitting process for your ADU:
- Submit plans to your local building department
- Prepare for plan check corrections and revisions
- Budget for permit fees (varies by jurisdiction)
- Understand the timeline (California law requires streamlined approval for compliant ADUs)
Under California law, compliant ADU applications must receive ministerial approval (without discretionary review) within 60 days in most cases.
Select a Contractor
Choose a qualified contractor for your ADU project:
- Look for contractors with specific ADU experience
- Verify licenses and insurance
- Check references and past projects
- Get multiple bids to compare
- Ensure they're familiar with California building codes
Consider contractors who specialize in the type of ADU you're building (conversion, prefab, custom-built, etc.).
Key Design Considerations
Space Planning
Efficient layout is crucial in ADUs, where every square foot counts. Consider:
- Multi-purpose spaces that serve several functions
- Built-in furniture and storage to maximize usable space
- Open floor plans to create a sense of spaciousness
- Vertical space utilization with tall ceilings where possible
Natural Light
Maximize natural light to make your ADU feel larger and reduce energy costs:
- Strategic window placement for optimal daylight
- Skylights or solar tubes for additional illumination
- Glass doors to bring light into interior spaces
- Light colors for walls and ceilings to reflect light
Energy Efficiency
California's Title 24 requirements mandate energy-efficient construction:
- High-quality insulation for walls, floors, and ceilings
- Energy-efficient windows and doors
- ENERGY STAR appliances
- Solar readiness or installation
- Efficient HVAC systems sized appropriately
Accessibility
Consider accessibility features, especially if the ADU will house aging family members:
- Zero-step entries
- Wider doorways (36" minimum)
- Accessible bathroom design with grab bars
- Lever-style door handles
- Adequate turning radius for mobility devices
Water Efficiency
California's water conservation requirements affect ADU design:
- Low-flow fixtures for sinks, showers, and toilets
- Drought-tolerant landscaping around the ADU
- Consideration of greywater systems for irrigation
- Rainwater harvesting where feasible
Relationship to Main House
Consider how the ADU will relate to the primary residence:
- Visual harmony with the main house's architectural style
- Privacy considerations for both structures
- Shared vs. separate outdoor spaces
- Noise mitigation between units
Sample Floor Plans
These sample floor plans demonstrate efficient space utilization for different ADU sizes and configurations. Use them as inspiration for your own design.

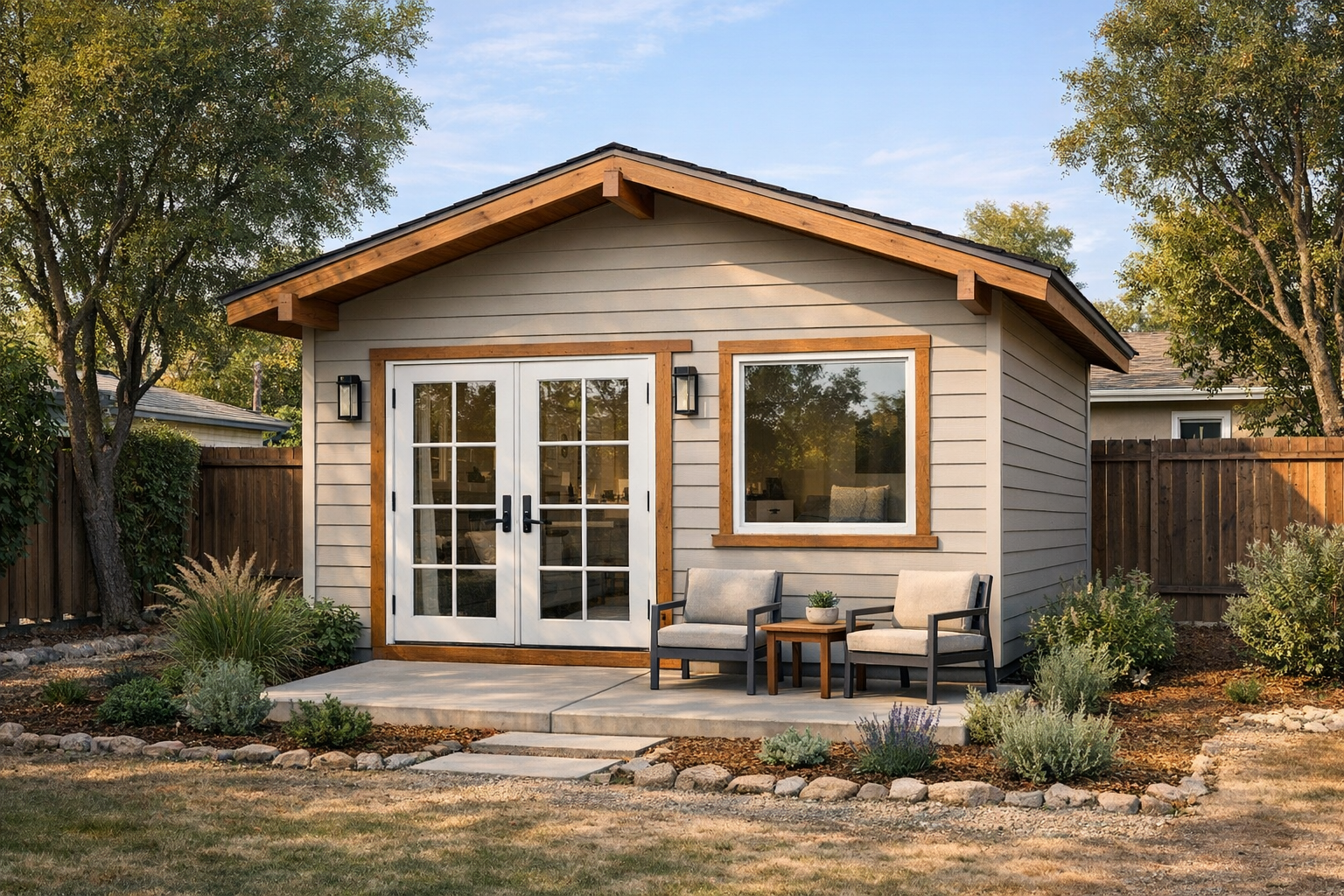

Studio ADU (400 sq ft)
This compact studio design maximizes functionality in minimal space:
- Open-concept living/sleeping area
- Efficient kitchenette with full-sized appliances
- Full bathroom with shower
- Built-in storage throughout
- French doors to extend living space outdoors
Perfect for a single occupant or as a rental unit.
One-Bedroom ADU (600 sq ft)
This one-bedroom layout offers privacy while maintaining an open feel:
- Separate bedroom with closet
- Combined living and dining area
- Full kitchen with island
- Bathroom with tub/shower combo
- Stacked washer/dryer in closet
- Small covered porch
Ideal for a couple or as a comfortable rental unit.

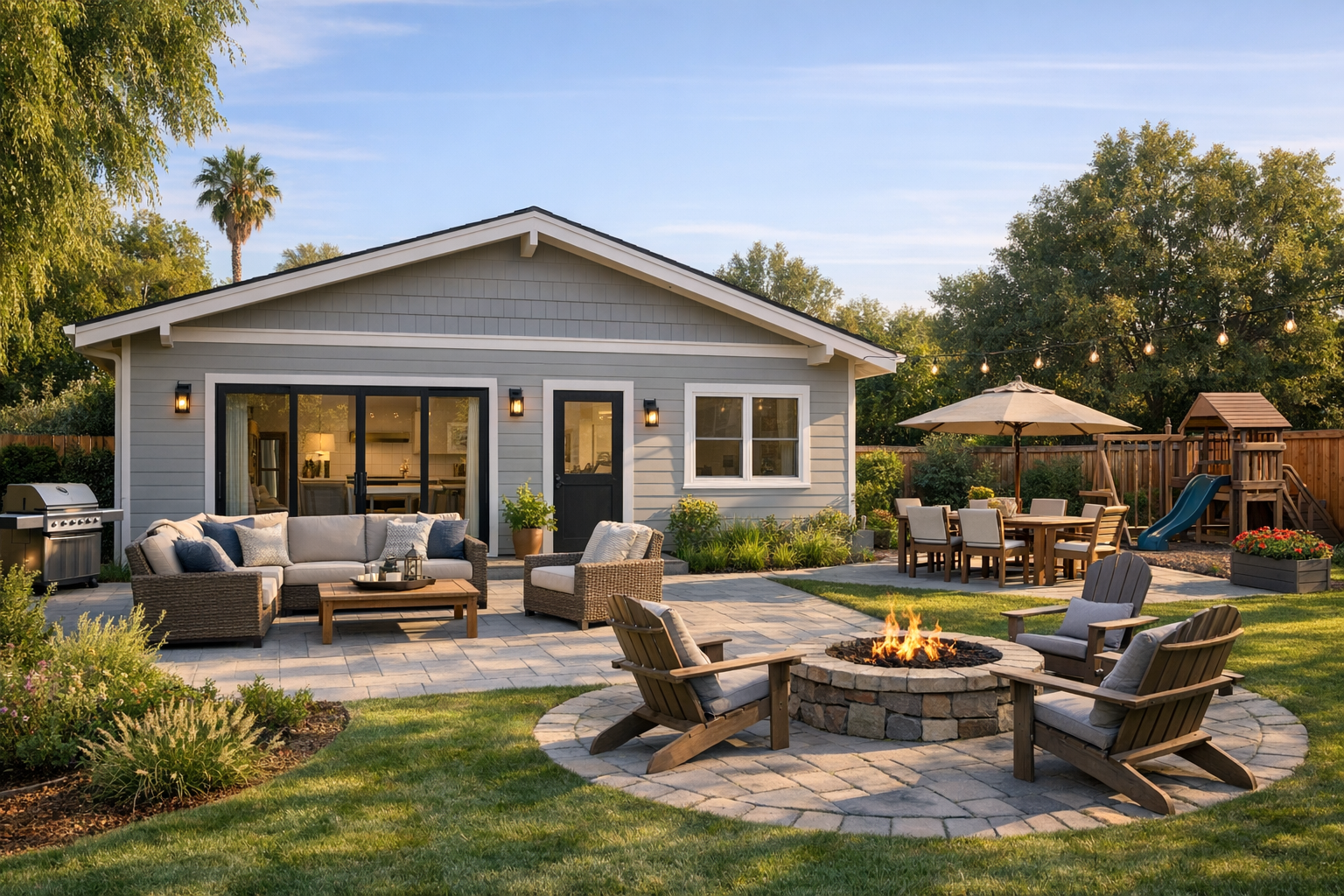

Two-Bedroom ADU (900 sq ft)
This family-friendly layout accommodates multiple occupants:
- Primary bedroom with en-suite bathroom
- Second bedroom ideal for children or guests
- Open kitchen, dining, and living area
- Second full bathroom
- Laundry area
- Covered patio extending living space
Perfect for family housing or as a high-value rental.
Frequently Asked Questions
How long does the ADU planning and design process typically take?
The planning and design phase typically takes 2-4 months, depending on the complexity of your project and how quickly you make decisions. This includes property assessment, initial design concepts, revisions, and finalizing plans for permit submission.
Do I need to hire an architect for my ADU?
While not always legally required, working with an architect or designer experienced in ADUs is highly recommended, especially for custom designs. They can help navigate regulations, maximize your space, and create plans that will pass permitting. For simpler projects like garage conversions or prefab units, you might work directly with a design-build contractor.
Can I build an ADU if I have an HOA?
In California, recent legislation (AB 670) prevents HOAs from prohibiting or unreasonably restricting ADUs on single-family lots. However, HOAs can still impose "reasonable restrictions" on aspects like design and aesthetics. Review your HOA's CC&Rs and consult with your HOA board early in the planning process.
What's the difference between a prefab ADU and a site-built ADU?
Prefab (prefabricated) ADUs are manufactured off-site in sections and then assembled on your property. They often offer faster construction timelines and more predictable costs. Site-built ADUs are constructed entirely on your property from the ground up, offering more customization but typically taking longer to complete and having more variable costs.
Can I convert my garage into an ADU in California?
Yes, garage conversions are one of the most popular and cost-effective ADU options in California. State law specifically protects the right to convert garages into ADUs, and local jurisdictions cannot require replacement parking when a garage is converted. However, the conversion must meet building code requirements for habitable space, including ceiling height, insulation, and egress.
